China Standard Light Rail
Product introduction

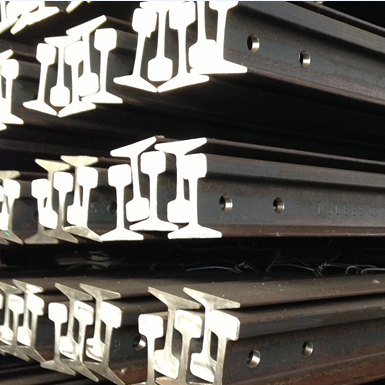

Qiao Gong Light Rail refers to the steel rail with a nominal weight of less than or equal to 30 kg/m. Light rail is mainly used for laying temporary transportation lines and special lines for light locomotives in forest areas, mines, factories, construction sites, etc.
Product parameters (specifications)
|
China Light Rail GB11264-89
|
|
model
|
size(mm)
|
weight(kg/m)
|
material
|
length (m)
|
|
head width A (mm)
|
height B (mm)
|
Bottom width C (mm)
|
Thick waist D (mm)
|
|
|
|
|
GB
6KG
|
25.4
|
50.8
|
50.8
|
4.76
|
5.98
|
Q235B
|
6-12
|
|
GB
9KG
|
32.1
|
63.5
|
63.5
|
5.9
|
8.94
|
Q235/55Q
|
6-12
|
|
GB 12KG
|
38.1
|
69.85
|
69.85
|
7.54
|
12.2
|
Q235/55Q
|
6-12
|
|
GB 15KG
|
42.86
|
79.37
|
79.37
|
8.33
|
15.2
|
Q235/55Q
|
6-12
|
|
GB 22KG
|
50.3
|
93.66
|
93.66
|
10.72
|
22.3
|
Q235/55Q
|
6-12
|
|
GB 30KG
|
60.33
|
107.95
|
107.95
|
12.3
|
30.1
|
Q235/55Q
|
6-12
|
